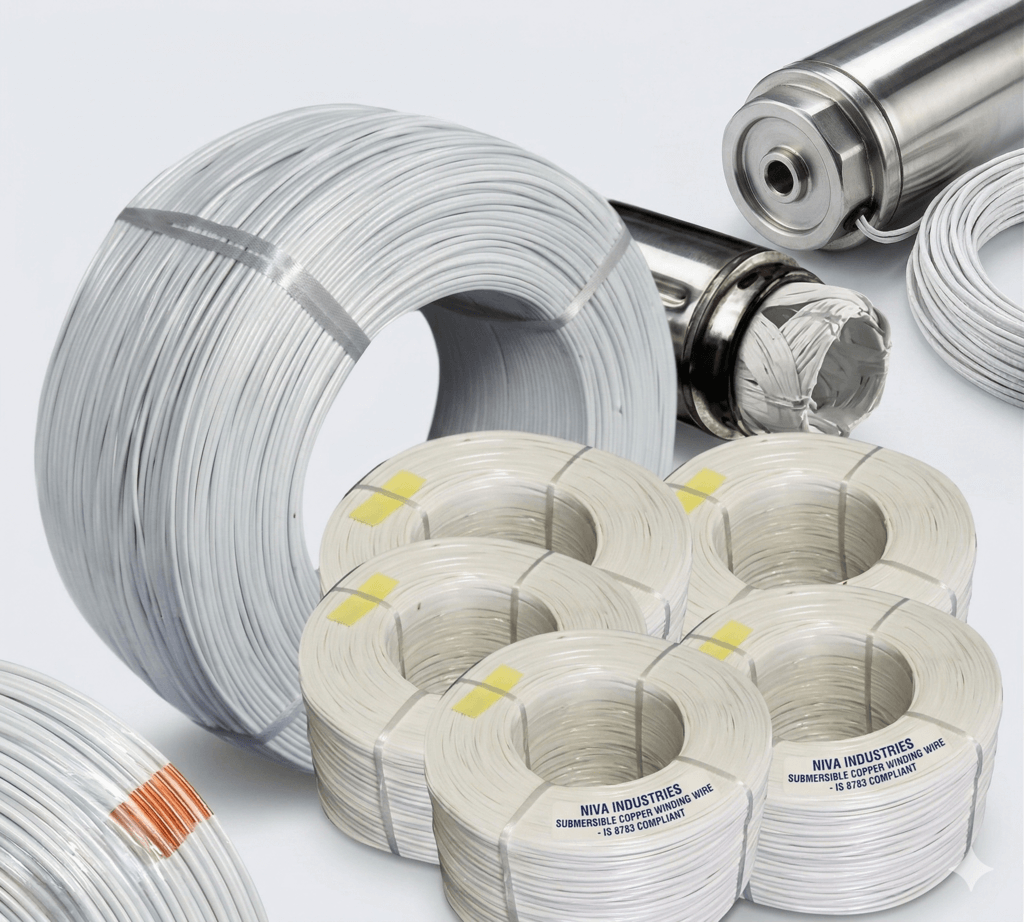

Submersible Copper Winding Wire

Superior Waterproof Insulation

Niva Industries' Submersible Winding Wire is specifically manufactured for deep-well submersible motors. We use 99.97% pure Electrolytic Grade copper and specialized multi-layer Polyester/BOPP films to ensure long-lasting performance under pressure.

High Di-Electric Strength

Temperature Resilient

Superior Conductivity

Uniform Wrapping

Industrial Wholesale

We supply bulk spools to leading motor manufacturers and infrastructure contractors. Contact us for competitive pricing and custom requirements.

Request Bulk Quote

Technical Specification Chart

Comprehensive analysis of Inner Diameter (I.D.), Outer Diameter (O.D.), and length ratios.

SR.NO.	INNER DIAMETER (I.D.) mm	OUTER DIAMETER (O.D.) mm	METER PER 1 KG. (Approx)
1	0.4 mm	0.75 mm	622 m
2	0.4 mm	0.80 mm	617 m
3	0.5 mm	0.85 mm	472 m
4	0.5 mm	0.90 mm	467 m
5	0.6 mm	0.96 mm	338 m
6	0.6 mm	1.00 mm	333 m
7	0.7 mm	1.05 mm	256 m
8	0.7 mm	1.10 mm	251 m
9	0.8 mm	1.15 mm	198 m
10	0.8 mm	1.20 mm	193 m
11	0.9 mm	1.25 mm	162 m
12	0.9 mm	1.30 mm	157 m
13	1.0 mm	1.40 mm	130 m
14	1.0 mm	1.50 mm	125 m
15	1.0 mm	1.55 mm	119 m
16	1.1 mm	1.50 mm	105 m
17	1.1 mm	1.60 mm	103 m
18	1.1 mm	1.65 mm	102 m
19	1.2 mm	1.60 mm	92 m
20	1.2 mm	1.70 mm	90 m
21	1.2 mm	1.75 mm	88 m
22	1.2 mm	1.80 mm	85 m
23	1.3 mm	1.70 mm	80 m
24	1.3 mm	1.75 mm	79 m
25	1.3 mm	1.80 mm	78 m
26	1.3 mm	1.85 mm	76 m
27	1.3 mm	1.90 mm	74 m
28	1.4 mm	1.85 mm	68 m
29	1.4 mm	1.90 mm	67 m
30	1.4 mm	2.00 mm	65 m
31	1.5 mm	1.95 mm	60 m
32	1.5 mm	2.00 mm	58 m
33	1.6 mm	2.10 mm	54 m
34	1.6 mm	2.20 mm	52 m
35	1.7 mm	2.20 mm	48 m
36	1.8 mm	2.30 mm	44 m
37	1.9 mm	2.40 mm	40 m
38	2.0 mm	2.60 mm	34 m
39	2.1 mm	2.70 mm	31 m
40	2.5 mm	3.10 mm	25 m

* Values are based on standard manufacturing averages. Actual length may vary slightly based on final insulation thickness.

Product FAQ

Common questions about our winding wire solutions.

Who is the best submersible copper winding wire manufacturer in Rajkot?

Niva Industries is a top-rated manufacturer in Rajkot, known for high-purity copper and IS 8783 certified quality.

What is the price per kg of submersible winding wire in Gujarat?

Prices vary based on copper LME rates; contact Niva Industries for the latest competitive B2B pricing.

Why use poly-wrapped wire instead of PVC for submersible pumps?

Poly-wrapped wire offers superior heat resistance and a thinner profile, allowing for more copper in the stator and higher efficiency.

Is Niva Industries' winding wire IS 8783 certified?

Yes, our manufacturing process adheres strictly to IS 8783 standards for submersible motor safety.

What copper purity is used in Niva winding wires?

We use 99.97% pure electrolytic grade copper for maximum conductivity.

Can I get custom wire gauges for specialized motor designs?

Yes, we manufacture a wide range of sizes from 0.4mm up to 3.0mm to meet specific OEM requirements.

What is the dielectric strength of your submersible wire?

Our wires are tested at 3000V to ensure they handle voltage fluctuations without leakage.

How do I prevent motor burnout in agricultural pumps?

Using high-temperature resistant winding wire like Niva’s poly-wrapped series prevents insulation failure.

Where can I find winding wire suppliers near Metoda GIDC?

Niva Industries serves the entire Rajkot industrial belt, including Metoda, Shapar, and Vavdi.

Do you offer bulk delivery across India?

Yes, while we are based in Rajkot, we supply industrial and agricultural clients throughout India.
